TAG TRAILER SINGLE AXLE HD SEAMLESS
Have a similar trailer to sell? List yours now for $29.
Getting a quote won't affect your credit score.
( 60 months - 6.85% p.a. )
Tag Trailer
Victoria
N/A
N/A
- Details
8 Laidlaw Drive, Delacombe Victoria 3356
Map
Directions:
Seller's Comment

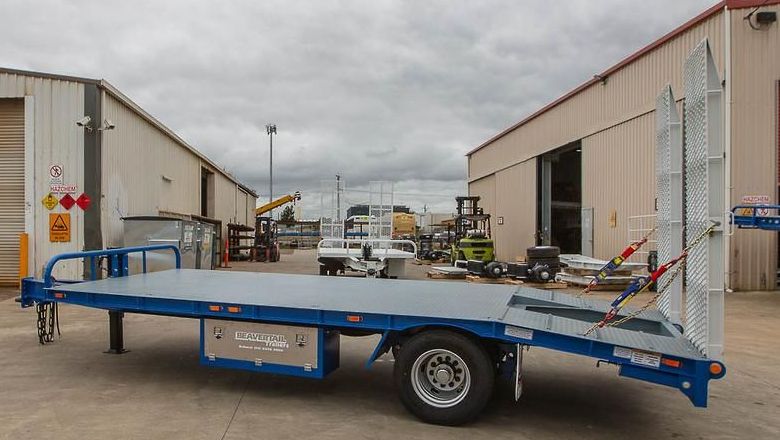

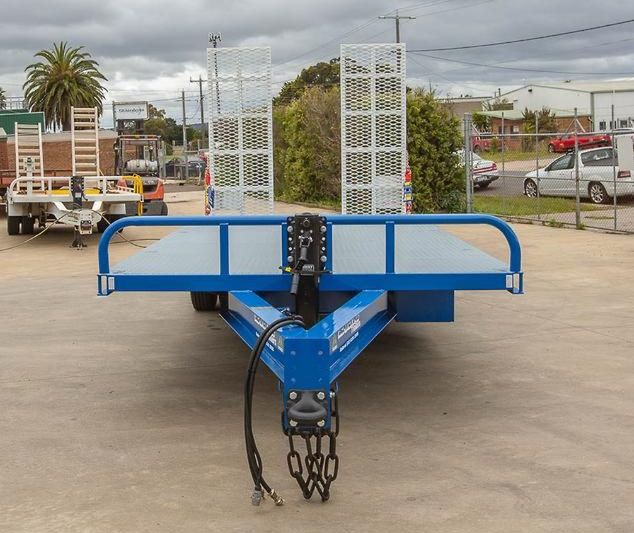

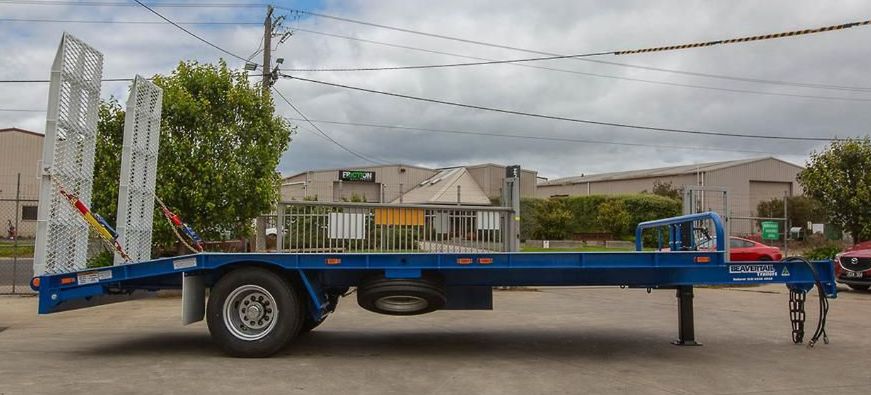

TAG TRAILER SINGLE AXLE HD SEAMLESS
- ATM up to 13 tonne
- Total Length: 9.30 meters (subject to truck and trailer combination not exceeding 19.0 meters)
- Deck: 6.0 meters with In-deck tie-down points (can be built to suit your requirements)
- Beavertail 1.50 meters
- Drawbar 1.50 meters
- Backboard and ramps 300mm
- Width 2.50 meters
- Main chassis rails: 250 UB
- Spring underslung 9 leaf suspension (Maxus)
- Full air brakes with ABS and auto slack adjusters, EBS systems
- Floor: 5mm checker plate flush floor
- 180mm coaming rails with tie-downs
- 100 x 50 x 3mm cross members
- Axles:15 inch ten stud ABS compliant. (Maxus) (9.0 tonne gross rated axle group)
- Wheels: Steel
- Tyres: 265/70 R19.5” triangle brand low profile.
- Hydraulic double acting battery powered 5mm checker plate galvanised ramps, 2.60 meters long x 780mm wide, 150 x 75 x 8mm PFC, with dogs (web dogs) and chains supplied, stainless steel ramp hinge bar.
- 175 amp Anderson plug for charging battery power pack
- Open rear well for storing dogs and chains
- Brackets for provision at a later date for water tank, spare tyre/carrier and tool box to suit options below.
- 2 speed Maxus landing leg fixed to front hurdle of trailer or a fold away version if requiring to load to back of truck (hydraulic leg optional)
- All ADR and OHS compliant signage
- Rear stabiliser legs
- Rear mudguard and Beavertail mud flaps
- LED Multi Volt, LED harness system tier one product with in built reflectors
- LED combination tail lights on rear includes reversing lights
- Electrical plug and air fittings to suit truck
- Wattyl industrial two-pack polyurethane paint – colour of choice
- Safety chains.
- Comprehensive Owner’s Manual supplied
- Laser axle alignment
- Wheel brace for changing tyres
- Valve extension for inside tyre inflation
- Hydraulic landing leg
- Alloy or Chrome rims
- Spare tyre and carrier
- Polished alloy water tank 60 litre
- Steel tool box painted with stainless steel lid 1200mm long
- Full stainless steel tool box 1200mm long
- Custom built tool boxes
- Rope rail
- Winch track and sliding winches
- Hammer well
- Bi-fold ramps
- Wider single length ramps
- Oversize kit including flags, signage and flashing beacon
- Auger rack with holders for augers/hammer and drive/equipment attachments fixed to front hurdle or a removable rack (locked by container pins)
- Front Beavertail Mudflaps
- Additional paint colour
- Wheel nut indicators (recommended)
| ATM Up to | 13.0 tonne |
| Beavertail Ramp Length | 1.5 m |
| Overall Length | 9.3 m |
| Overall Length (Feet) | 29.9 ft |
| Deck Length | 6.0 m |
| Deck Width | 2.5 m |
| Deck Type | 5mm checker plate flush floor |
| Drawbar Length | 1.5 m |
| Carry Capacity Up To | 9.5 tonne |
| No. of Axles | 1 |
| Brakes | Drum |
| Suspension | Underslung Spring (Airbag Optional)* |
| Coupling Options | Pintle, Bartlett Ball, Ringfeeder |
