GORSKI TIPPING BODY TWIN STEER TRI AXLE HARDOX NEW - QT-TWINSTEER

Gorski Tipping Body Twin Steer / Tri Drive with tow connection COMPLETE:

BODY:
"Gorski Premium" Body up to 17m3 approx.
7.000m long x 1.050m high approx.
- Body Dimensions subject to final engineering design and approval
- 5mm QT450 HARDOX side sheets with internal pressed sides and pressed front sheet.
- 6mm QT450 HARDOX Floor sheet
- 5mm QT450 HARDOX Tailgate with 50mm 2-way Side Swing kit, air operated
- Custom built and ‘contoured’ Cab Guard with integrated QT450 (Hardox or Equivalent) Tarp shroud
- "Gorski Premium" full length pressed top rails & splash guards
- Angle welded to top of side walls and tail door
- "Gorski Premium" Fabricated Heavy Duty Main bearer 180mm
- Shovel rack fitted to front of body with ergonomic steps front of body
- Spreader Chains connected to tailgate
Included: 175mm Spray Suppressant full length of body

SUBFRAME:
 "Gorski Premium" heavy duty main bearers custom size depending on truck airbag/wheel clearance, minimum 125x75x5mm RHS.
Rear body pivots 50mm and removable body safety prop fitted to subframe.

TOW CONNECTION:
"Gorski Premium" tow crossmember with 50mm Rockinger coupling and 16mm (32T) Bartlett trailer attachments.
Compliant with ADR 62 requirements

HYDRAULICS:
-Hidromas 4 Stage telescopic hoist w/ chrome plated stages, 32T approx. with Safety Burst Valve as standard
-"Gorski Premium" pendant Cab Switches Electric
- Oil Tank (filled), PTO, Pump & Valve to suit.
- Gearbox included:
Fuller (KW, Western Star, Freightliner)
I-Shift (Volvo)
SR/VT Series (Volvo)
M Drive (Mack)
ZF (DAF/MAN)
All other gearboxes will be quoted as an additional extra

LIGHTING:
LED Side Lamps x5 per side, LED Rear Lamps x4 per side with regulation reflectors, 2x reverse spots, licence plate lamp and reverse squawker.
-       "Gorski Premium" Aluminium Light Brackets fitted to heavy duty, 50x50x5mm RHS.
Compliant with ADR 13.

PAINT:
Body ("Gorski" white) and Chassis Rails (black) finished using hi-grade industrial paint (2 Pac).  Side/Rear Gorski decals also included, as well as regulation Rear Marker Plates and safety stickers.

***Please note: to match colour to your truck cabin in a specific white may incur an additional fee.  It is also important to mention that we do not paint inside the tipper body.

TARP:
Razor electric remote control tarp kit, PVC or Mesh

VASS:
VASS Certificate Included

ADDITIONAL EXTRAS:
Please see list of all upgradeable extras

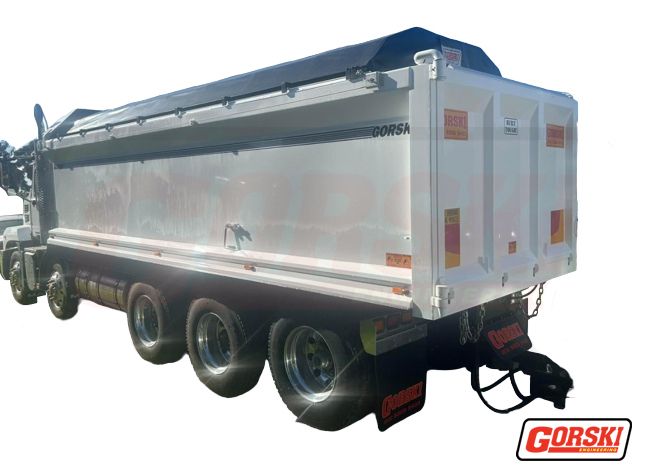

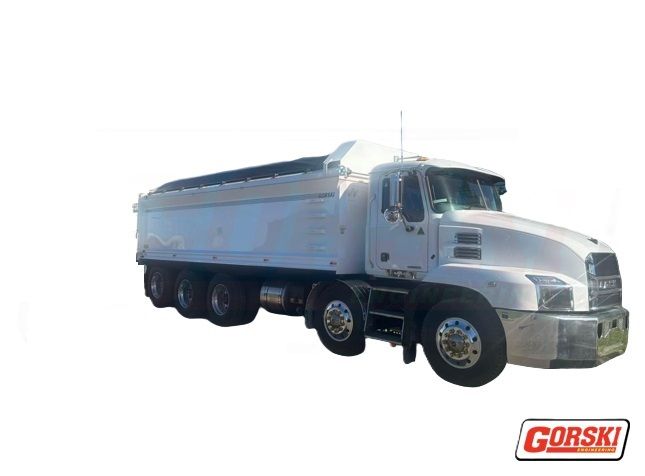

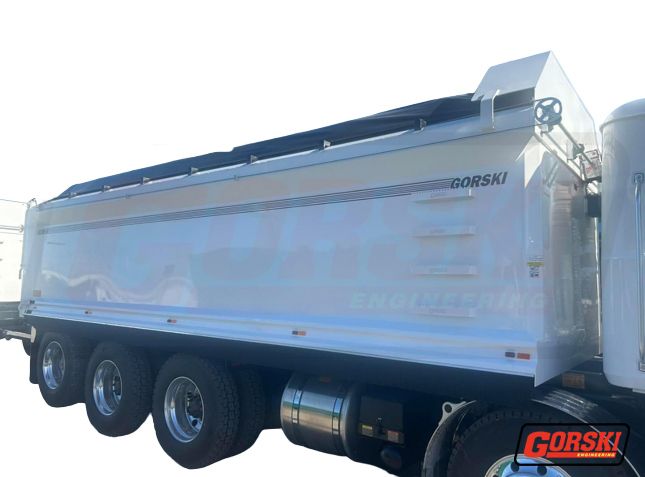

PLEASE NOTE: PHOTOS TO BE USED AS A GUIDE ONLY. PRIME MOVER NOT INCLUDED

FURTHER INFORMATION
Inspections of our products is always welcome at ***, *** ***.
Contact us at  Engineering on *** if you have any further questions.
Note: This Gorski Twin Steer Tipping Body  is sold as a New item.
We describe all SemiTrailers to the best of our ability. Photos form part of all descriptions.
It remains the buyers responsibility to ensure equipment is in a safe working order before use.
Not what you are looking for?  Please give ***, ***  *** a call as we may be able to help you out on that hard to find item.

WORKMANSHIP GUARANTEE
We are proud to use only the best materials for our work, which are applied by skilled and experienced staff. We guarantee our workmanship will continue to look great and perform as intended.
We provide a 12 month warranty on structural work, parts and equipment. All work is to be carried out by *** P/L or a repairer authorized and nominated by us. Vehicles left at owners risk, we do not accept any liability for loss or damage.
