PRICE POA

GH Plant

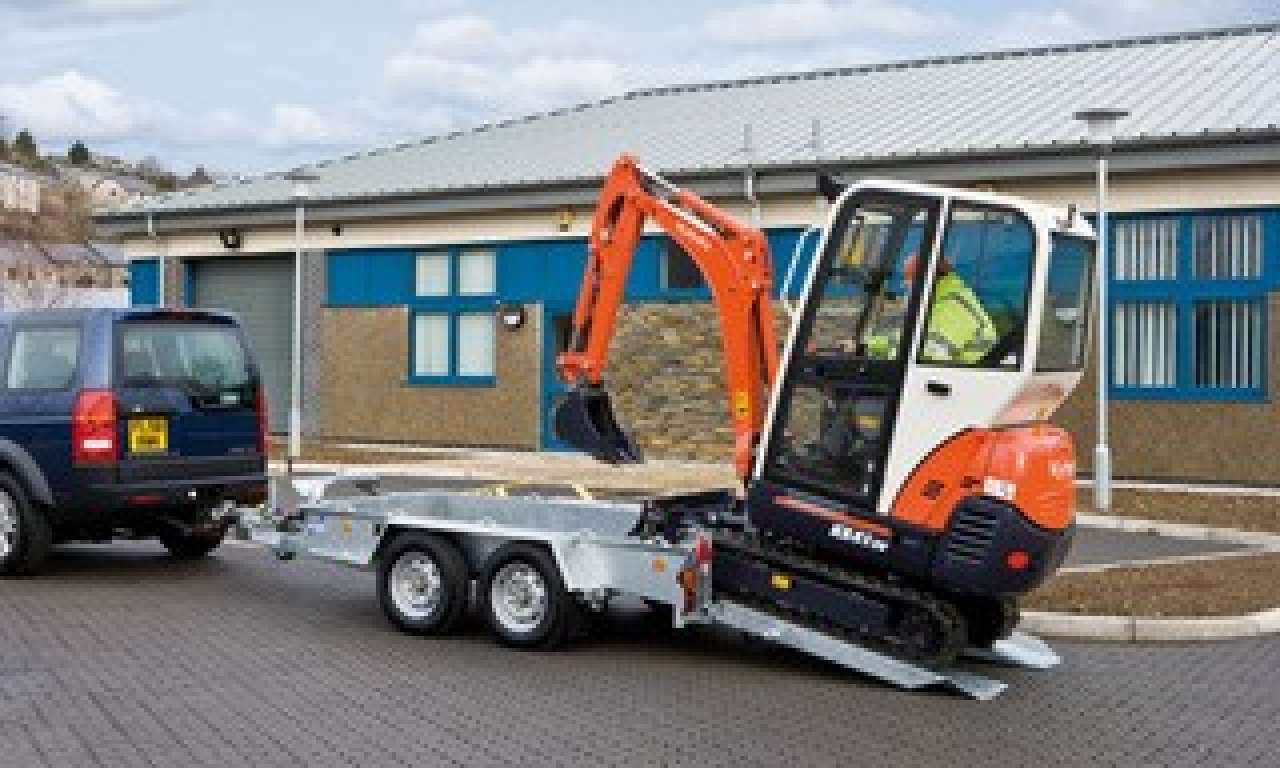

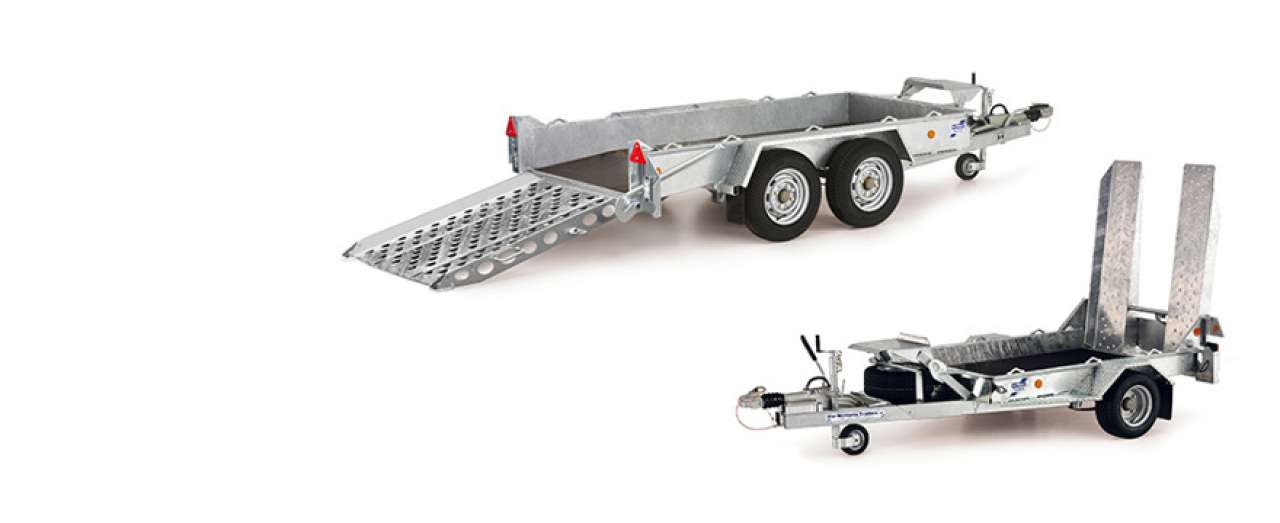

GH models are of galvanized welded construction with leaf spring suspension ensuring they will withstand tough conditions. Our range comprises of four model options; GH64, GH94, GH94BT and GH1054. The single axle GH64 is compact yet robust providing a neat and convenient trailer that can be towed behind a car, the 1230kg payload is designed for smaller items of plant such as micro-excavators. The GH94 comes in two versions – most popular is a beavertailled version on 165R13C tyres – known as GH94BT. Also available is a GH94 with a flat bed on 195/55R10C tyres. The Beavertail feature means that the excellent loading angle of 13⁰ is maintained during loading. A thick resin coated plywood platform (24mm) makes this trailer particularly suitable for carrying rollers as well as excavators. The 2.79m (9’) length it provides ample loading space behind the rear axle. This enables a full range of mini-excavators to be loaded along with machines with a more central centre of gravity, such as hi-tip dumpers. The GH1054 is only available with a beavertailled feature and offers one of the highest payloads ever produced by Ifor Williams Trailers. With its robust, welded construction and heavily treaded 185/70R13C tyres, the GH1054 is a rugged trailer for demanding conditions.

KEY FEATURES

Three self-supporting knife-edge options are available on the GH range.
The 1.2m (3’9”) full width ramp provides the benefits of a full width ramp and is bevelled to help guide the tracks or wheels of plant being loaded.
The 1.45m (4’9”) bevelled ramp offers a reduced loading angle of 13° during loading and the ramp is bevelled to help guide the tracks or wheels of plant being loaded.
The 1.45m (4’9”) sliding skids offers all the benefits of the 1.45m bevelled ramp with further flexibility for easier loading of narrower plant e.g. access platforms.
In addition a fourth option, comprising of 1.2m (3’9”) sliding skids is available for the GH1054 only. This version offers maximum payload.
