Car and Machinery Hydraulic Tilting Rampless / Ramped Trailer ATM 3.5ton or 4.49ton

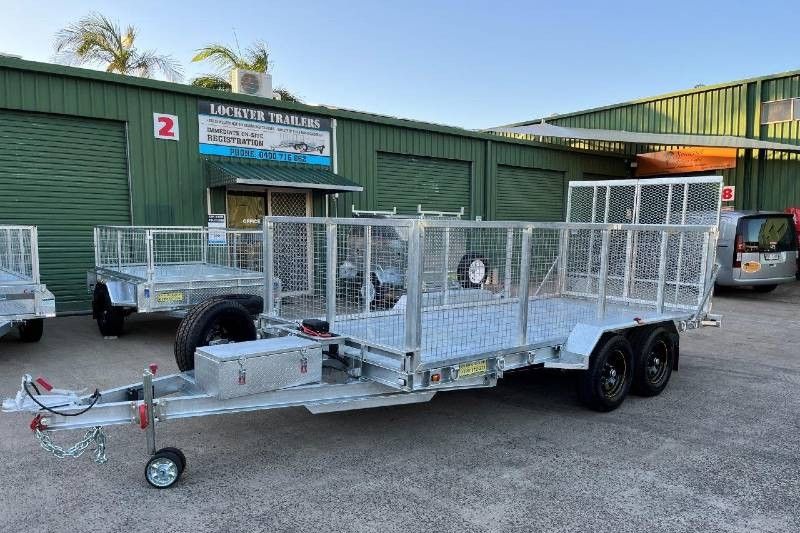

The Ultimate 3.5ton Car and Machinery Hydraulic Tilting Rampless / Ramped Trailer – also avail 4.49ton ATM
This very specialised multipurpose combination Car Machinery Trailer is a re-fabrication of our existing hydraulic tilting trailer with the addition of a removable 900mm high perimeter cage and extended 1.6m long hinged down ramps for loading of low clearance machinery and cars providing a unique combination of uses.
For further information on this unique trailer please contact the team at ***.
The General Specifications are detailed below:
- On site no waiting Qld Registration available, completed on the spot
- 16.6ft Hot Dipped Galvanized Tandem Hydraulic Powered Car/Machinery Carrier
- DECK SIZE: 5 x 2m (16.6 x 6.6ft) clear of any obstacles
- Includes 12,000lb (6 Ton) electric Winch with wireless remote and wired in remote
- Wheel guards only 165 mm above trailer deck eliminating door damage to vehicles

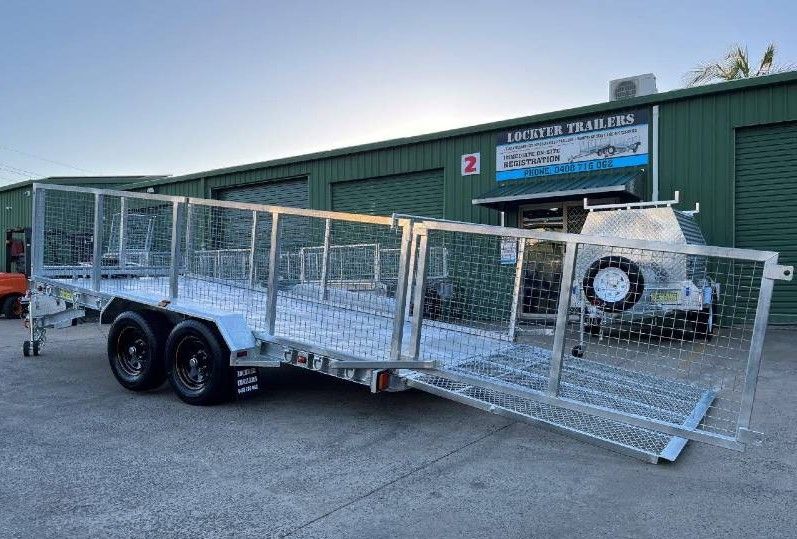

- Additional fabricated full width twin fold down loading ramps for low loading of low clearance items

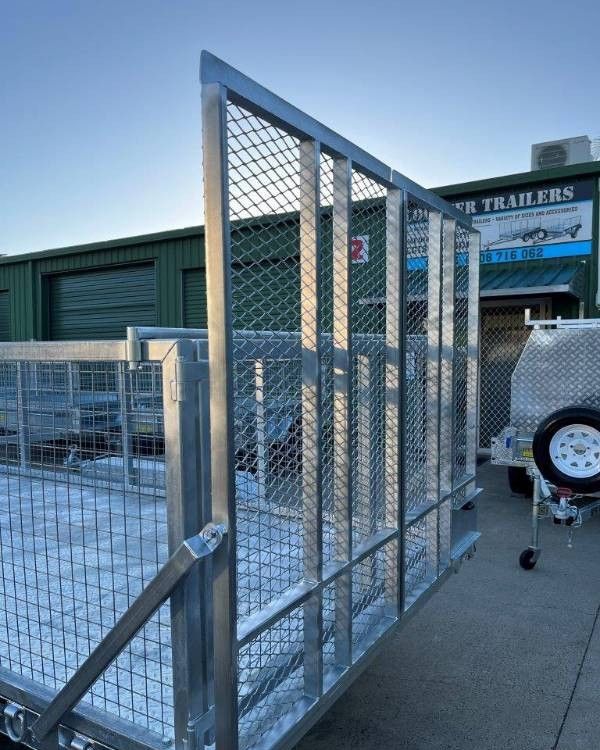

- 1000mm high Perimeter Cage with rear opening gate. Constructed using 50 x 50 SHS with 50 x 50 mm square mesh
- 120mm Structural C-section chassis supper strong and flexible
- Under body extra bracing with long lasting construction
- ATM 3500kg TARE: 1050kg PAYLOAD: 2490kg
- ATM 4490kg TARE: 1100kg PAYLOAD: 3390kg (Pricing on Request)
- Fully Welded Heavy Duty Body then hot dipped galvanised
- Integrated winch box built into front of trailer deck with 12,000lb winch included
- Hydraulic Ramp with Push button Controls for Ease of Loading
- Fold Down Tie down Points (12 in total) 6 along each sides in C-section channel for straps or chains
- Heavy Duty Japanese DEXTER Wheel Bearings (4500kg Rated)
- 4-wheel x 12inch Electric Drum Brakes
- Emergency Brake Away System Fitted
- Hot dip galvanised Steel Toolbox on drawbar houses Hydraulic Pump, Electric Motor and Deep Cycle Battery
- Multi-volt 12/24v LED lights with Marker Lights both sides. ADRs Complied
- 50mm x 3.5ton Quick Release Coupling
- 1900mm Long Draw Bar – 120mm C-section
- 3500kg Tow hitch brake/handbrake
- 50mm Solid Axles. Rocker Roller Suspension with Heavy Duty 9 Leaf Springs (4500kg rated)
- 15-inch x 6 Stud white Sunraysia wheels
- Brand new 8 Ply 195 R15 Light Truck Tyres or 225/70 R15 if 4490kg ATM
- Includes swing up extra heavy duty twin 8-inch Jockey Wheels 1200kg rated
ON SITE QUEENSLAND REGISTRATION
