2025 Tristar Side Tippers and Dolly Double Set
Have a similar trailer to sell? List yours now for $29.
Getting a quote won't affect your credit score.
( 60 months - 6.85% p.a. )
Tipper
Queensland
47,000 kg
N/A
- Details
59-77 Carrington Road, Torrington Queensland 4350
Map
Directions:
Seller's Comment
2025 Tristar Side Tippers and Dolly Double Set
2025 2 x Trailers 1 X Dolly

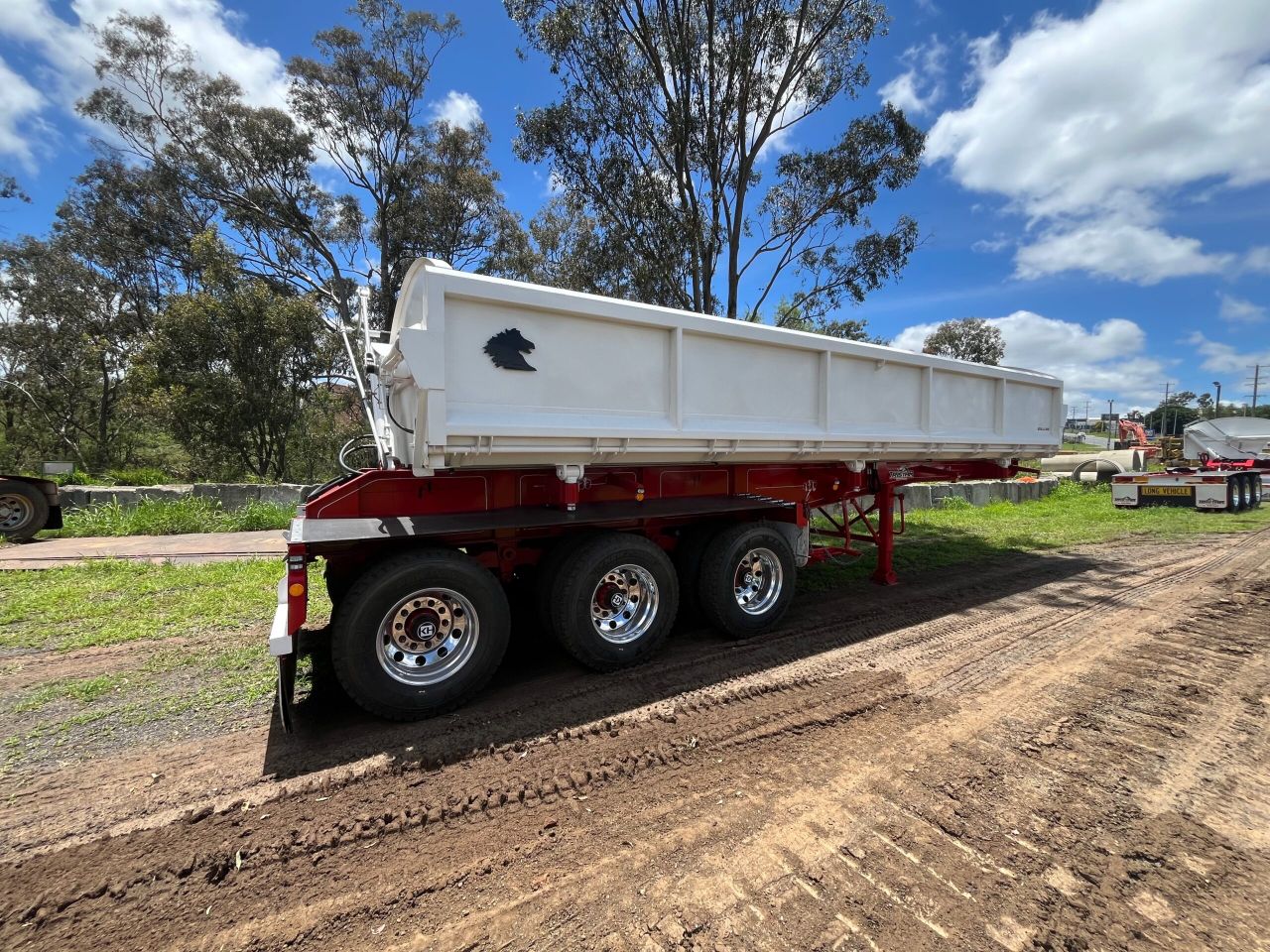

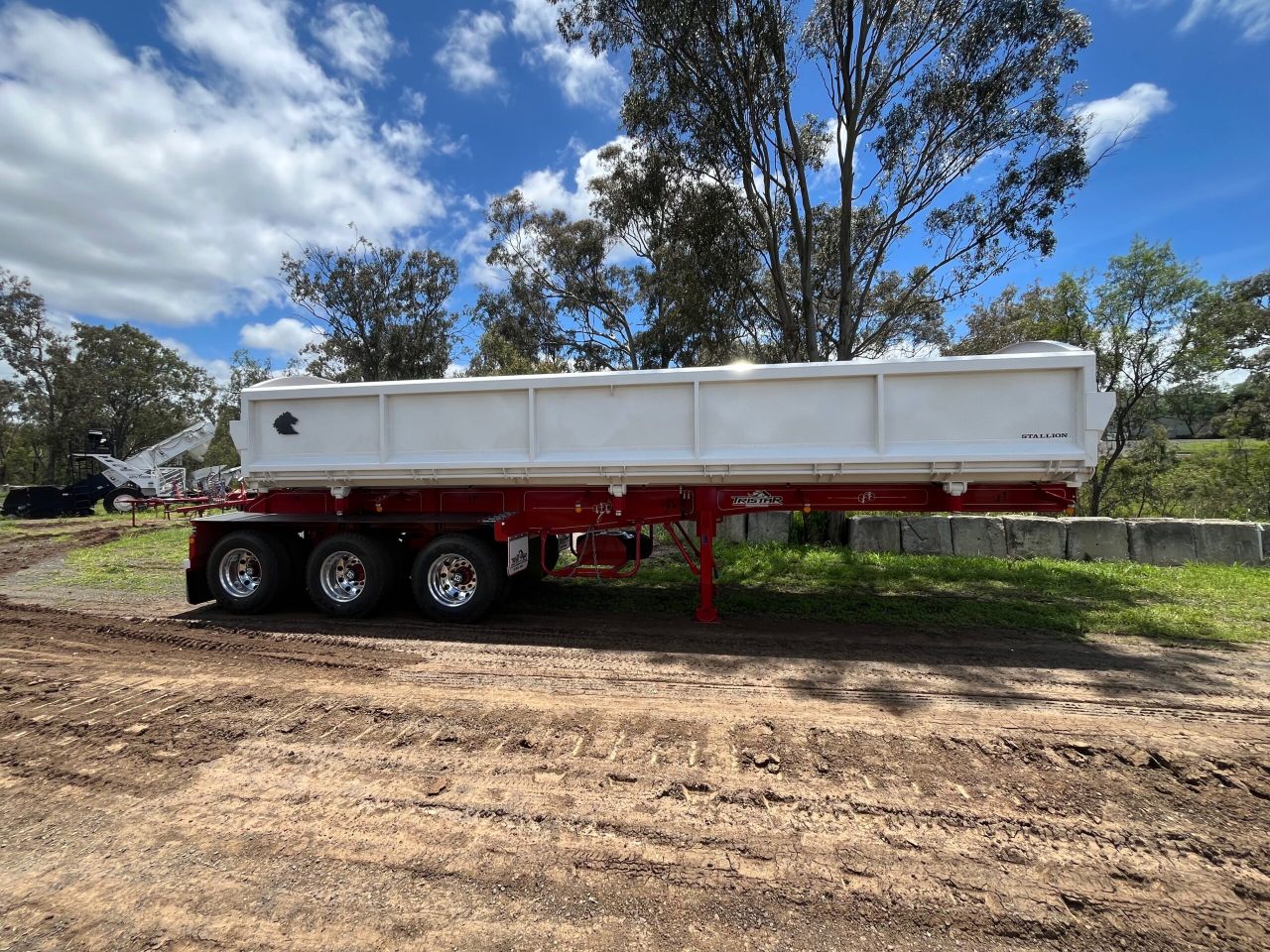

Tristar Industries Side Tipping B Trailer
MODEL – 23m3 Side Tipping B Trailer
CAPACITY – ATM 47 Tonne evenly distributed
TIPPER CONFIGURATION – Door Trailer
LOAD COVER – Manual operated roll tarp with spring assisted arms
BODY – 5mm 450 Grade HARDOX floor, 4mm 450 Grade Hardox side, door and ends
DIMENSIONS Length – 9,000mm, Width – 2,480mm
CHASSIS – 700 Grade high tensile steel chassis webb and cross members
LENGTH – 10,500mm
SKID PLATE – 12mm Mild Steel plate with dual king pin position, 50mm King pin
SUSPENSION – 9’1” overslung mechanical suspension
AXLES – 3 x KHITCH 10 stud 285pcd drum brake axles with parallel bearings
HYDRAULICS – Single stage double acting 6 ½” hydraulic lift cylinders and 3 ½” hydraulic door cylinders
BRAKE SYSTEM – EBS Road Train brake control kit
REAR CONNECTIONS – All brake lines, hydraulic lines and electrical wiring are carried through to the Rear, TEMA 10000 Hydraulic couplings.
HOIST CONTROL – Single control valve air operated and locking valves on door rams
WATER TANK – 1 x 60L polished aluminium water tank on passenger side
TYRES – 13 x 11R x 22.5 Tyres

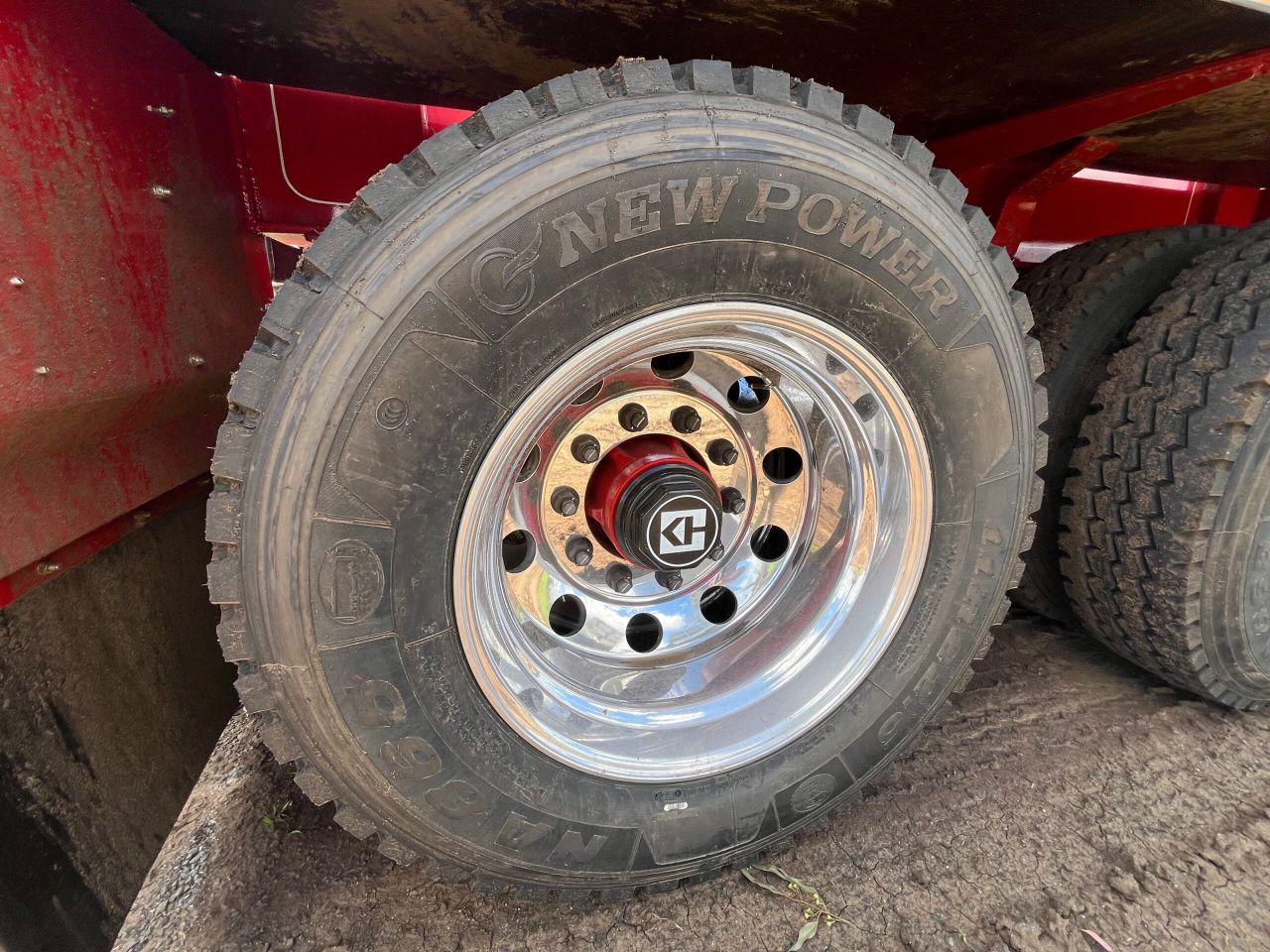

WHEELS – 13 x 8.25 x 22.5 10 Stud 285PCD machined alloy wheels
ELECTRICAL – LED lights with HD 6mm cable
TYRE CARRIER – Dual type, double hinged
TOOLBOXES – 1 x 500 x 400 x 350. Black powder coated with polished stainless steel lid
LEGS – Landing legs, 2 speed wind up type
TOW COUPLING – 50mm Ringfeder AUS 303
MUDGUARDS – Heavy duty rubber belting with white mudflaps at rear
SIGNAGE – Road train flip signs in rear mudguard brackets
Tristar Industries Triaxle Dolly
FRAME CONSTRUCTION – fully fabricated from Bis 80 grade plate A-frame from 100 x 50 x 5mm RHS
AXLES – 3 x KHITCH 10 stud 285pcd drum brake axles with parallel bearings
SUSPENSION – 9’1” overslung mechanical suspension
BRAKES – Air Brake Corporation road train brake control kit
RIMS & TYRES -12 X 8.25 x 22.5 10 stud 285pcd Machined alloy wheels 12 x 11R22.5 Tyres
TURNTABLE – Holland FW70 50mm
DRAW BAR EYE – Khitch 50mm bolt in type
LIGHTS & WIRING – LED lights with HD 6mm cable
MUD GUARDS – Full length rubber belting with white mud flaps front and rear.
Price: $TBA
